8' Protector Premier Hood Assembly

• Nominal Width: 8'
• Region: U.S. and Canada, International
• Blower Requirements: Remote blower required
• Conformance: ANSI Z9.5, ASHRAE 110, ASTM E84, CAN/CSA      C22.2, NFPA 45, SEFA 1, UL
• Enclosure Height: 59.0"
• Lighting: T8 fluorescent
• Weight: 650 lbs
• Dimensions: 96"w x 31.7"d x 59.0"h
• Electrical: 100-115 volts, 50/60Hz, 10 amps

Features (All Models)

• By-pass airflow design
• Eco-Foil™ Air Foil reduces energy consumption by 7-10% compared to flat air foils while its aerodynamic curve allows air to sweep the work surface for maximum containment. Clean-Sweep™ openings pull inflow air from under the air foil forcing air into non-turbulent air streams.
• Cord-Keeper™ Slots on left and right side of air foil keep electrical cords out of the way
• Glacier white powder-coated steel exterior is durable and corrosion-resistant
• One-piece molded fiberglass liner and pre-set baffle(s) with flame spread less than 25 per ASTM E84
• Tempered safety glass vertical-rising sash with powder-coated sash handle and Clean-Sweep™ openings
• 37.5" (95.3 cm) high sightline from the work surface to header panel allows taller users comfortable viewing while standing
• Removable front and side panels, and front service access panels for access to plumbing and electrical wiring
• Pre-wired T8 fluorescent lighting with vapor-proof design and ADA-compliant light and blower switches (not on models with built-in explosion proof blower)
• On models for use with remote blower, 12.8" ID exhaust connection(s)

 Protector Standard Storage Cabinets support Labconco fume hoods and may  be used for storage and venting of small laboratory instruments and mild  acids and other reagents.

• Durable epoxy-coated steel construction
• Attractive glacier white exterior complements laboratory casework and Labconco fume hoods.
• Manual-closing, non-locking door(s)
• Include four leveling feet and one 8" filler panel to increase cabinet depth from 22" to 30".
• Support loads up to 800 pounds.
• Cabinet Width: 48"
• Door(s): Dual, Manual Close
• Filler Panel Depth: 8.0" (20.3 cm)
• Maximum Base Height: 36.75" (93.3 cm)
• Minimum Base Height: 35.5" (90.2 cm)
• Storage Type: Non-chemical general storage
• Weight: 150.0 lbs
• Dimensions: 48.0" w x 22.0" d

8' SpillStopper Work Surface, 30.0" deep.

 SpillStopper Work Surfaces are molded from a special formulation of  corrosion-resistant epoxy resins. They are dished and contoured to conform to the interior liner of Protector Laboratory Hoods. The front edge has a large radius to aerodynamically direct airflow into the fume hood. Pre-drilled holes for venting and plumbing passthroughs are provided. Some include 6" x 3" cupsink cutouts.

• Cupsink cutouts: Left rear cupsink cutout
• Hood, Enclosure or Glove Box Width: 8'
• Weight: 240 lbs
• Dimensions: 96"w x 30.0"d x 1.25"h

 Guardian Digital Airflow Monitor senses and alerts the operator to low  airflow conditions. Each monitor includes a face plate with circuit  board, electrical power pack, vinyl tubing, side wall flow tube adapter  and wiring instructions. From the monitor's face plate, the user can  easily select and calibrate a setpoint between 50 and 250 fpm using a  velocity meter. An LCD displays actual face velocity. If the hood's face  velocity falls below the programmable set point, an audible alarm  sounds and the an alarm indicator glows red. The audible alarm can be  muted with one touch.

Kit includes copper tubing, brass valve and orange knob/connector. Max. flow rate of 23.7 CFM. Max. working pressure of 40 psi.

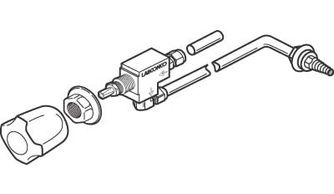

Kits mount on the right or left side of any Protector Premier, XStream,  XL, XLE or PVC Hood. Each kit includes one remotely-controlled service  fixture with valve and 0.25" diameter tubing, color-coded fixture knob  and color-coded hose connector. Inlet tubing is not included.

 Kit includes one remotely-controlled gooseneck with brass valve and  0.375" diameter copper tubing and green fixture knob. Inlet tubing is  not included. Includes green epoxy-coated brass rigid/swivel gooseneck.  Max. flow rate of 3.5 GPM (13.2 LPM). Max. working pressure of 40 psi.

Gooseneck Fixture Kits mount on the left or right side of any Protector  Premier, XStream, PVC, Stainless Steel, XL or XLE Laboratory Hood with  24" to 30" interior depth.
